GECKO300T Double-Sided Inspection Machine
Product Application Scope
Suitable for single-sheet printed products after die-cutting, and capable of printing quality defect inspection for paper packaging such as clothing hang tags, pharmaceutical packages, electronic products, daily chemical packages and color boxes.
Defect Detection Capabilities
● Conventional printing defects (ink specks, dirt spots, color difference, insect marks, water droplets, oil droplets)
● Die-cut station defects (die-cut misalignment)
● Surface finishing defects (film lamination, hot stamping of gold and silver, partial UV coating, embossing, screen printing)
● Variable data defects (1D barcode and 2D QR code reading, duplicate codes, wrong codes, missing codes) Non-conforming products with the above defects can be rejected automatically.
Product Features
Efficient job switching: Job switching only takes 1 minute, with simple modeling process, greatly saving debugging time and easy to operate.
Flexible customization: High flexibility, industrial cameras of different quantities and functions can be freely configured according to production demands, and inspection solutions can be customized as required.
Reliable inspection: Stable operation, supporting multi-category inspection to block defective products.

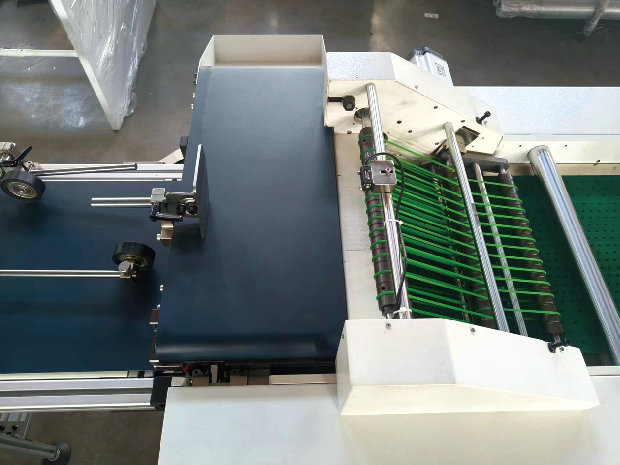

Stable operation: Smooth paper conveying, full air suction structure equipped in the inspection area to effectively reduce machine adjustment workload.

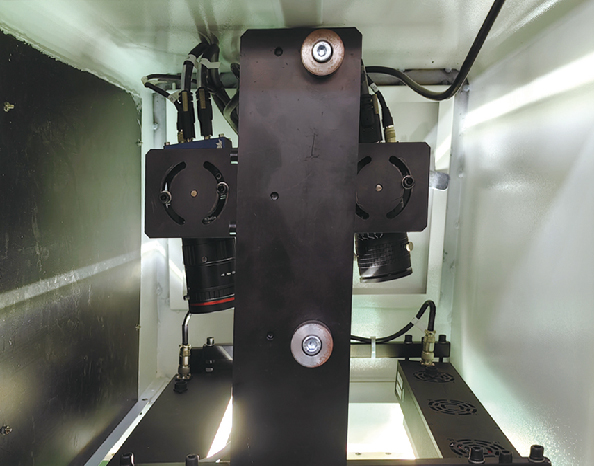

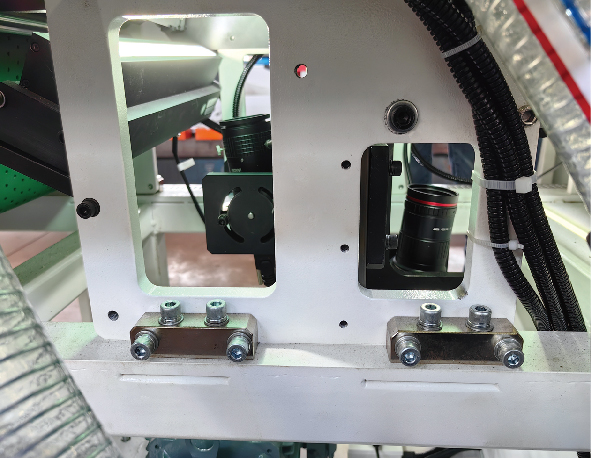

Premium imaging: Equipped with industrial cameras, featuring high detection precision and authentic color reproduction.
Performance Parameters
Item | Functional Parameters |
Maximum Inspection Speed | 120 m/min |
Maximum Paper Feeding Size | 300 mm (Width) * 300 mm (Length) |
Minimum Paper Feeding Size | 40 mm (Width) * 50 mm (Length) |
Paper Basis Weight | 157~900 g/m2 |
Imaging Precision (mm) | Front Direct Lighting Station: 0.1 mm*0.1 mm (4K Camera) Front Oblique Lighting Station: 0.1 mm*0.1 mm (4K Camera) Rear Direct Lighting Station: 0.1 mm*0.1 mm (4K Camera) Rear Oblique Lighting Station: 0.1 mm*0.1 mm (4K Camera) |
Conventional Defect Inspection (Defect Contrast Exceeds Grade 20) | 1. Minimum detectable area for missing print, dirt spots and other defects: Front side ≥0.2 mm2 2. Overprint deviation inspection: ≥0.2 mm 3. Die-cut deviation inspection: ≥0.2 mm 4. Scratches: Horizontal or vertical scratches with vertical width over 0.2 mm, horizontal width over 0.15 mm, length over 15 mm and contrast over Grade 20 are detectable 5. Partial color difference inspection: ΔE≥2.5 ΔELab |

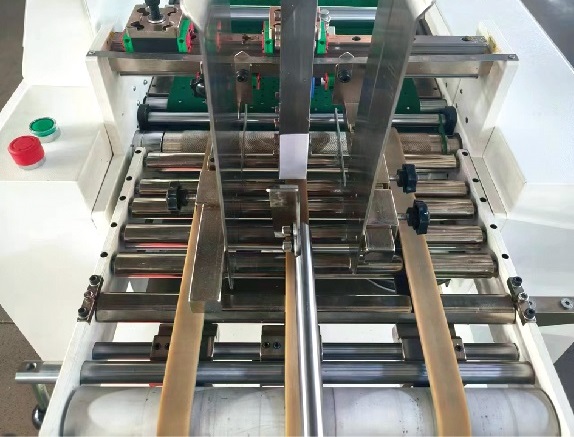

Overall Floor Dimension | Single friction feeder* single waste rejecting unit * fish-scale paper collector: 5550 mm*850 mm*1600 mm |
Mechanical Weight | 1.2 Ton |
Total Power Consumption | 6 KW |
